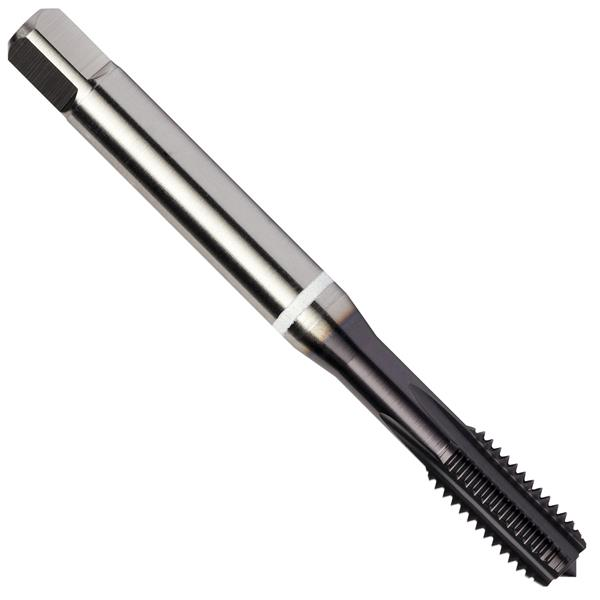

7/8-14 in. UNF Carbide (HSS-E) TiAIN Finish RH 4 Flute 2B/3B Plug Spiral Point Machine Tap
- Item Code: 7350313
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 7/8" with 14 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970" shank and 0.5200" square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel
Tech Specs
Back To Top| Coating/Finish | SUPER-B |
|---|---|
| Brand | Dormer |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 4 |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
