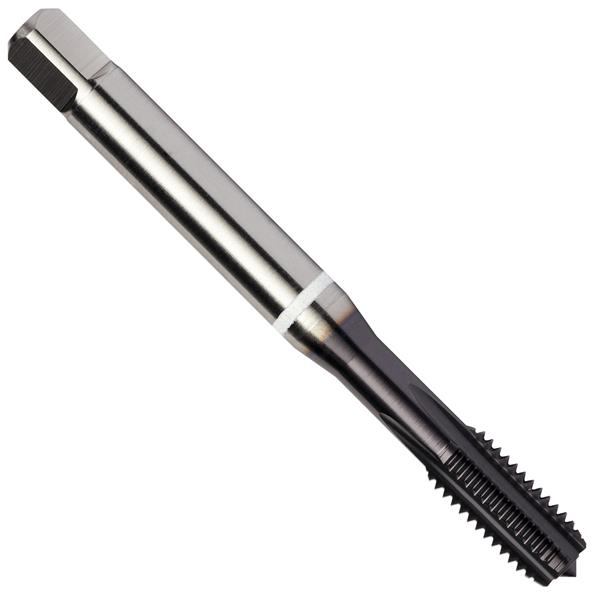

12 x 1.50 in. Fine Cobalt (HSS-E) Super B Finish 4 Flute RH 6H Plug Spiral Point Machine Tap
- Item Code: 7350331
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M12 with 1.50 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | SUPER-B |
| Overall Length Inches | 3.937 |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Overall Length Metric | 100 mm |
