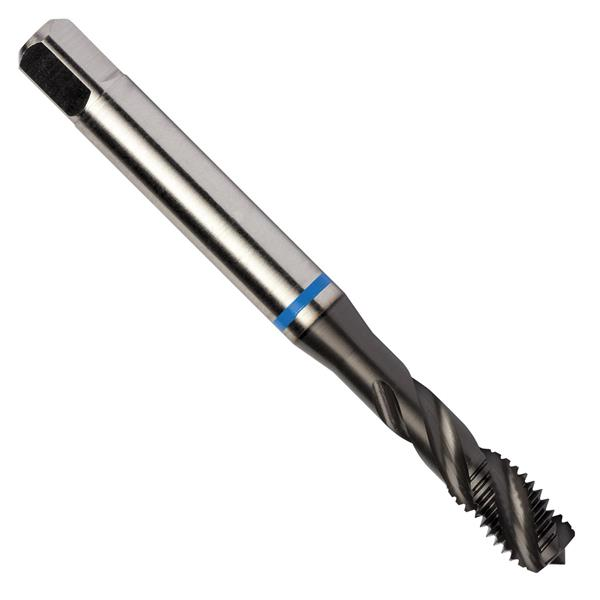

1/4-20 in. UNC Carbide (HSS-E) TiAIN Finish RH 3 Flute 2B/3B Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350339
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 1/4" with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550" shank and 0.1890" square drive, powder metallurgical HSS-E with Super-B coating and 40? helix angle for 2.5xD blind hole threading in stainless steel
Tech Specs
Back To Top| Helix Angle | 40 Deg. |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Brand | Dormer |
| Coating/Finish | SUPER-B |
| Shank Style | Cylindrical shank with Square |
