10-32 in. UNF Carbide (HSS-E) TiAIN Finish RH 3 Flute 2B/3B Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350356
- Brand: Dormer
- Unit Size: 1
Description

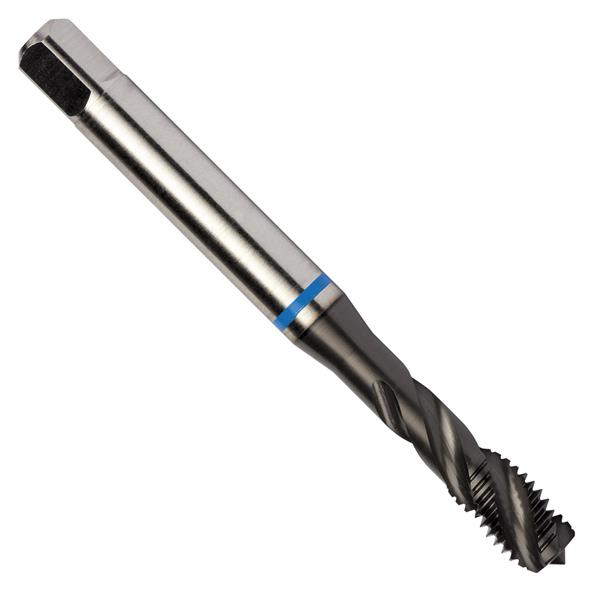

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with Super-B coating and 40? helix angle for 2.5xD blind hole threading in stainless steel
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Helix Angle | 40 Deg. |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | SUPER-B |
| Cutting Direction | Right |
| Number of Flutes | 3 |
