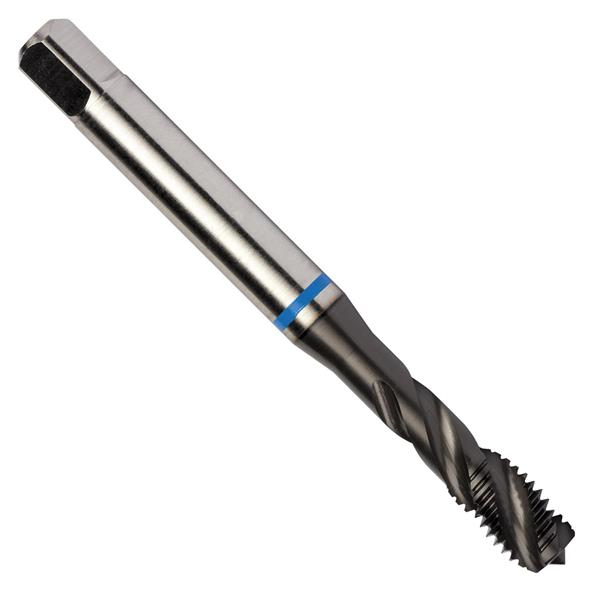

5 mm x 0.80 mm Coarse Cobalt (HSS-E) TiAIN Finish 3 Flute RH 6H Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350375
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with Super-B coating and 40? helix angle for 2.5xD blind hole threading in stainless steel
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Metric | 70 mm |
| Helix Angle | 40 Deg. |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Coating/Finish | SUPER-B |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 2.7559 |
| Shank Style | Cylindrical shank with Square |
