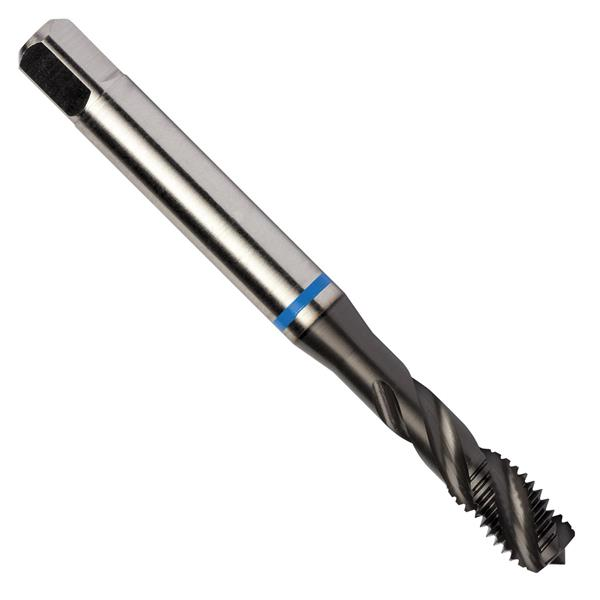

14 mm x 2.00 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6H Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350380
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4290" shank and 0.3200" square drive, powder metallurgical HSS-E with Super-B coating and 40? helix angle for 2.5xD blind hole threading in stainless steel
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Coating/Finish | SUPER-B |
| Overall Length Inches | 4.3307 |
| Overall Length Metric | 110 mm |
| Helix Angle | 40 Deg. |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 4 |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
