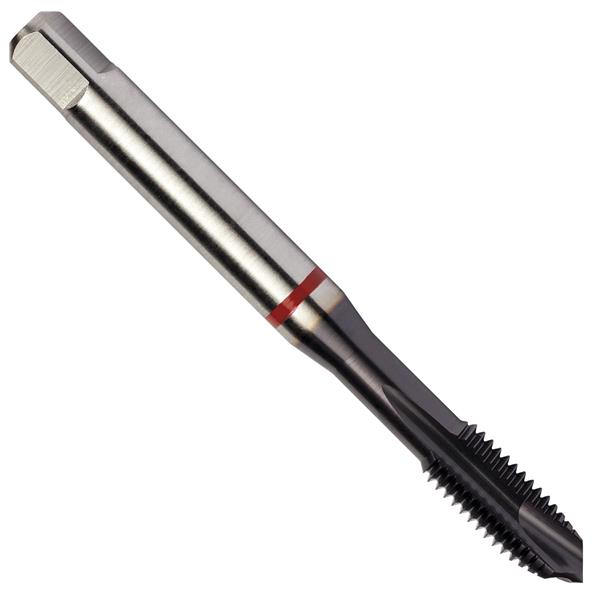

8 mm x 1.25 mm Coarse Cobalt (HSS-E) TiAIN Finish 3 Flute RH 6H Plug Spiral Flute Machine Tap
- Item Code: 7350418
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180" shank and 0.2360" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 3.5433 |
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
| Overall Length Metric | 90 mm |
| Material | HSS Cobalt Powdered Metal |
