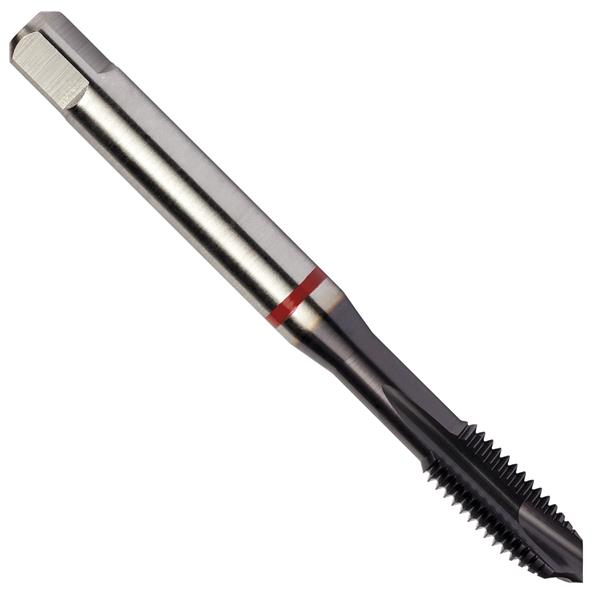

12 mm x 1.75 mm Coarse Cobalt (HSS-E) TiAIN Finish 3 Flute RH 6H Plug Spiral Flute Machine Tap
- Item Code: 7350420
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Tech Specs
Back To Top| Overall Length Metric | 110 mm |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
| Overall Length Inches | 4.3307 |
| Number of Flutes | 3 |
