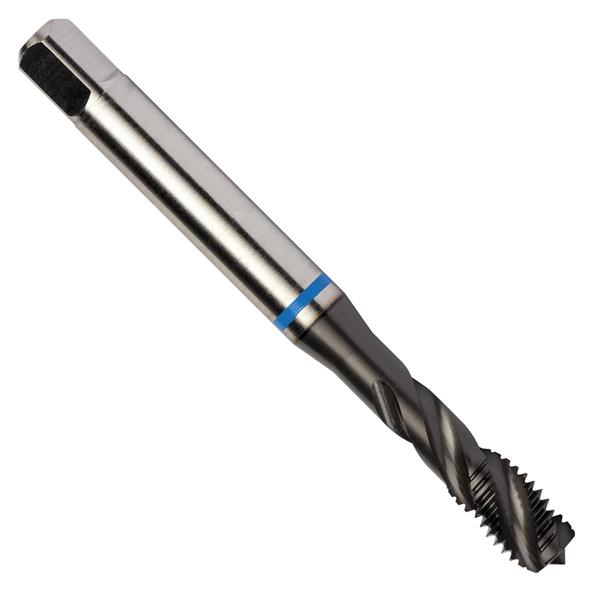

18 mm x 2.50 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6H Plug Spiral Flute Machine Tap
- Item Code: 7350423
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.5420" shank and 0.4040" square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 4 |
| Overall Length Metric | 125 mm |
| Coating/Finish | TiAlN/Top |
| Overall Length Inches | 4.9213 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
