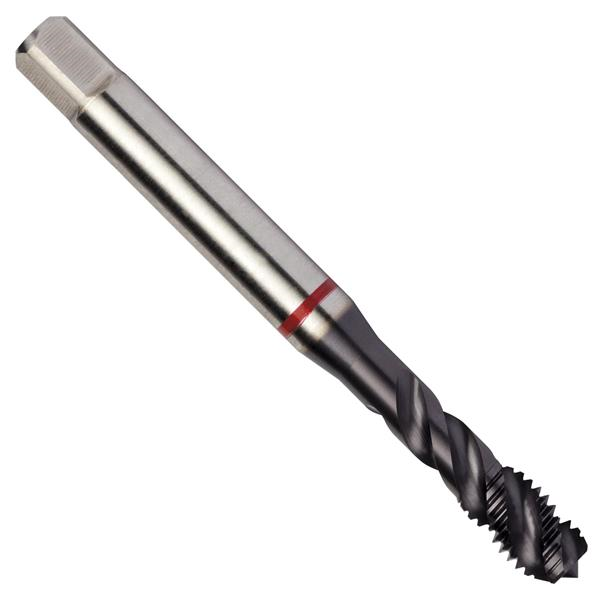

1/2-20 in. UNF Carbide (HSS-E) TiAIN Finish RH 3 Flute 2B Semi-Bottoming High Performance Spiral Flute Machine Tap
- Item Code: 7350448
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 1/2" with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45? helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel
Tech Specs
Back To Top| Coating/Finish | TiAlN/Top |
|---|---|
| Brand | Dormer |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Number of Flutes | 3 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
