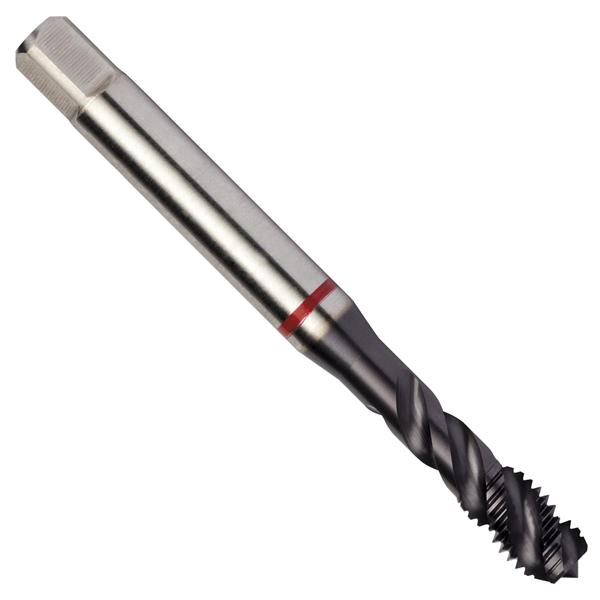

5 mm x 0.80 mm Coarse Cobalt (HSS-E) TiAIN Finish 3 Flute RH 6H Semi-Bottoming High Performance Spiral Flute Machine Tap
- Item Code: 7350455
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Red Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940" shank and 0.1500" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45? helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel
Tech Specs
Back To Top| Overall Length Inches | 2.7559 |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Number of Flutes | 3 |
| Overall Length Metric | 70 mm |
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
