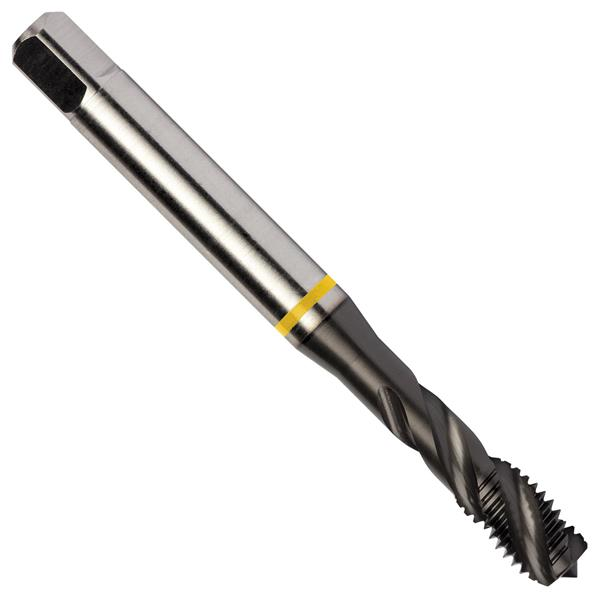

1/2-13 in. UNC Carbide (HSS-E) TiAIN Finish RH 3 Flute 2B Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350518
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 1/2" with 13 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670" shank and 0.2730" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40? helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Helix Angle | 40 Deg. |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | TiAlN/Top |
| Brand | Dormer |
