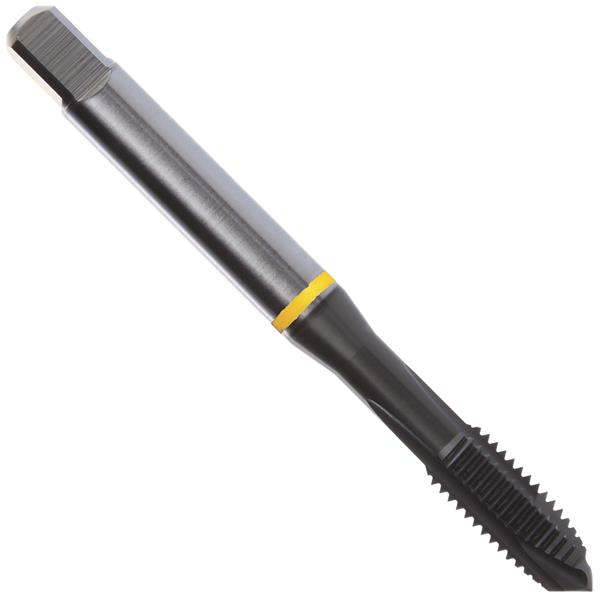

20 mm x 2.50 mm Coarse Cobalt (HSS-E) TiAIN Finish 4 Flute RH 6H Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350542
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6520" shank and 0.4870" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40? helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | TiAlN/Top |
|---|---|
| Overall Length Inches | 5.5118 |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Overall Length Metric | 140 mm |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Helix Angle | 40 Deg. |
