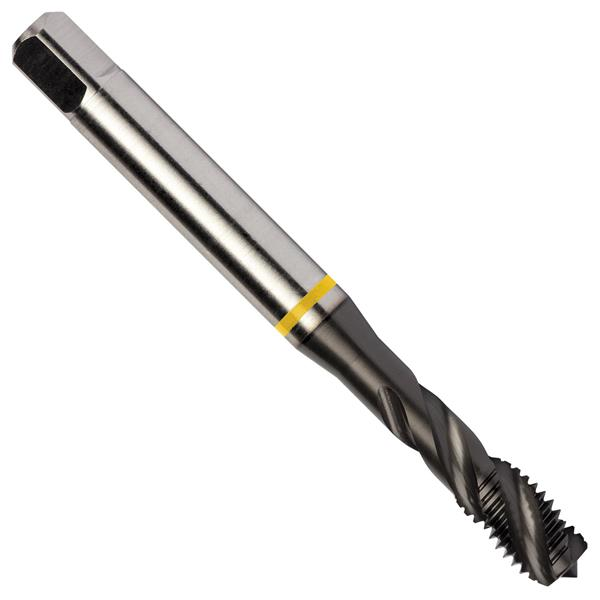

10 x 1.25 in. Fine Cobalt (HSS-E) TiAIN Finish 3 Flute RH 6H Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 7350545
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M10 with 1.25 mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810" shank and 0.2840" square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40? helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Brand | Dormer |
| Coating/Finish | TiAlN/Top |
| Overall Length Inches | 3.937 |
| Helix Angle | 40 Deg. |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Metric | 100 mm |
| Shank Style | Cylindrical shank with Square |
