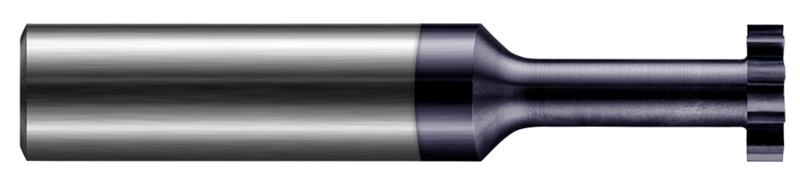

0.2500 in. (1/4) Cutter Diameter x 0.0620 in. (1/16) Width x 0.2500 in. (1/4) Neck Length 8 Flute AlTiN Nano Coated Carbide Square Standard Keyseat Cutter
- Item Code: 743962-C6
- Brand: Harvey Tool
- Unit Size: 1
Description
For Hardened Steels
Features
Back To Top- Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
- Latest generation AlTiN Nano coating offer superior hardness and heat resistance
- 90 deg. included angle, cutting on angle only
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Cutter Width | 0.0620" (1/16) |
|---|---|
| Material | Solid Carbide |
| Shank Diameter | 0.2500" (1/4) |
| Decimal Diameter | 0.2500" |
| Brand | Harvey Tool |
| Coating/Finish | AlTiN Nano |
| Number of Flutes | 8 |
| Fractional Diameter | 1/4" |
| Radial Depth Cut | 0.0480" |
| Type | I |
| Neck Length | 0.2500" (1/4) |
| Neck Diameter | 0.1250" (1/8) |
| Overall Length | 2.5000" (2-1/2) |
| Reach Multiple | (1x) |
