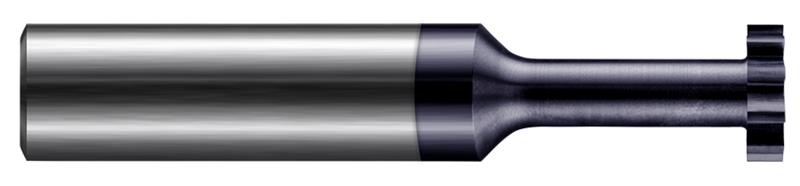

0.6250 in. (5/8) Cutter Diameter x 0.1870 in. (3/16) Width x 1.0000 in. (1) Neck Length 10 Flute AlTiN Nano Coated Carbide Standard Keyseat Cutter
- Item Code: 744370-C6
- Brand: Harvey Tool
- Unit Size: 1
Description
For Hardened Steels
Features
Back To Top- Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
- Latest generation AlTiN Nano coating offer superior hardness and heat resistance
- 90 Deg. included angle, cutting on angle only
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Coating/Finish | AlTiN Nano |
|---|---|
| Decimal Diameter | 0.6250" |
| Overall Length | 3.5000" (3-1/2) |
| Cutter Width | 0.1870" (3/16) |
| Fractional Diameter | 5/8" |
| Reach Multiple | (1.5x) |
| Brand | Harvey Tool |
| Neck Length | 1.0000" (1) |
| Number of Flutes | 10 |
| Radial Depth of Cut | 0.1370" |
| Shank Diameter | 0.6250" (5/8) |
| Neck Diameter | 0.3120" (5/16) |
| Type | I |
| Material | Solid Carbide |
