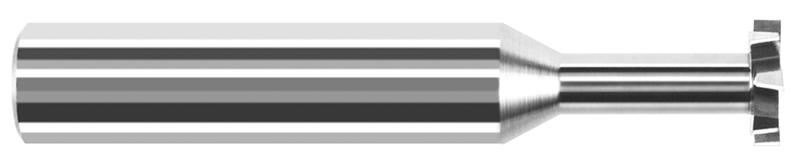

0.1562 in. (5/32) Cutter Diameter x 0.0310 in. (1/32) Width x 0.2340 in. (15/64) Neck Length 6 Flute Carbide Square Standard Stagger Keyseat Cutter

  • Item Code: 744831
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth Cut 0.0290"
Reach Multiple (1.5x)
Coating/Finish None
Overall Length 2.0000" (2)
Fractional Diameter 5/32"
Number of Flutes 6
Shank Diameter 0.1875" (3/16)
Neck Diameter 0.0780" (5/64)
Type I
Cutter Width 0.0310" (1/32)
Brand Harvey Tool
Decimal Diameter 0.1562"
Material Solid Carbide
Neck Length 0.2340" (15/64)
