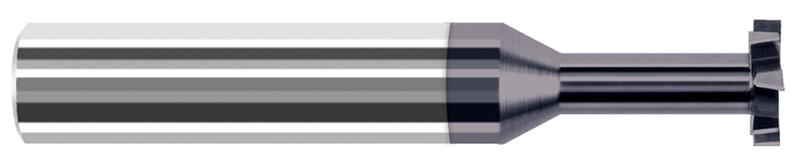

0.1562 in. (5/32) Cutter Diameter x 0.0930 in. (3/32) Width x 0.2340 in. (15/64) Neck Length 6 Flute AlTiN Coated Carbide Square Standard Stagger Keyseat Cutter

  • Item Code: 744893-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0930" (3/32)
Shank Diameter 0.1875" (3/16)
Type I
Decimal Diameter 0.1562"
Neck Diameter 0.0780" (5/64)
Neck Length 0.2340" (15/64)
Reach Multiple (1.5x)
Radial Depth Cut 0.0290"
Brand Harvey Tool
Material Solid Carbide
Overall Length 2.0000" (2)
Coating/Finish AlTiN
Fractional Diameter 5/32"
Number of Flutes 6
