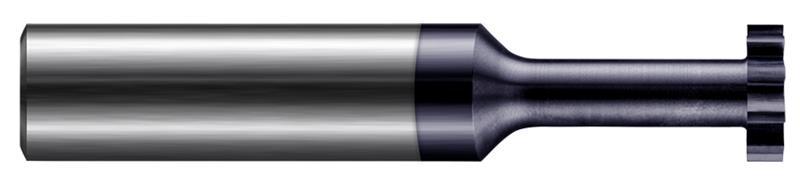

0.5000 in. (1/2) Cutter Diameter x 0.1250 in. (1/8) Width x 1.5000 in. (1-1/2) Neck Length 10 Flute AlTiN Nano Coated Carbide Square Standard Keyseat Cutter
- Item Code: 748260-C6
- Brand: Harvey Tool
- Unit Size: 1
Description
For Hardened Steels
Features
Back To Top- Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
- Latest generation AlTiN Nano coating offer superior hardness and heat resistance
- 90 deg. included angle, cutting on angle only
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Fractional Diameter | 1/2" |
|---|---|
| Overall Length | 3.0000" (3) |
| Shank Diameter | 0.5000" (1/2) |
| Coating/Finish | AlTiN Nano |
| Decimal Diameter | 0.5000" |
| Material | Solid Carbide |
| Brand | Harvey Tool |
| Cutter Width | 0.1250" (1/8) |
| Neck Length | 1.5000" (1-1/2) |
| Neck Diameter | 0.2500" (1/4) |
| Number of Flutes | 10 |
| Reach Multiple | (3x) |
| Radial Depth Cut | 0.1050" |
| Type | I |
