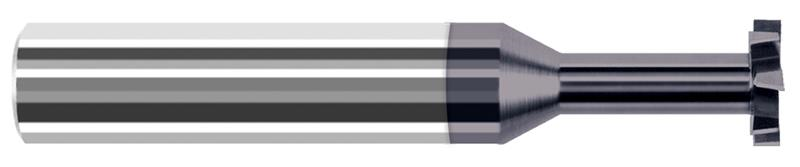

0.3120 in. (5/16) Cutter Diameter x 0.0620 in. (1/16) Width x 0.4690 in. Neck Length 6 Flute AlTiN Coated Carbide Square Stagger Keyseat Cutter

  • Item Code: 759530-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.4690"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Brand Harvey Tool
Coating/Finish AlTiN
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Neck Diameter 0.1560" (5/32)
Fractional Diameter 5/16"
Radial Depth of Cut 0.0680"
Shank Diameter 0.3125" (5/16)
Decimal Diameter 0.3120"
Type I
Reach Multiple (1.5x)
