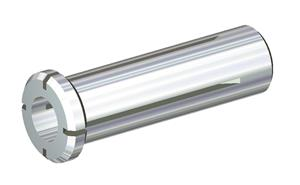

5/8 Inch Inside x 3/4 Inch Outside Diameter, 25mm Head Diameter, Slotted Hydraulic Chuck Sleeve
- Item Code: 75HC0625
- Brand: WIDIA-Erickson
- Unit Size: 1
| Adapter Size Machine Side-EPP |
0750 |
| Adapter/Shank/Bore Diameter (Fractional) |
3/4 |
| Adapter/Shank/Bore Diameter (mm) |
19.050 |
| Body Diameter Max (Inch) |
0.7500 |
| Clamping Diameter Max (Fractional) |
5/8 |
| Clamping Diameter Max (Inch) |
0.6250 |
| Clamping Diameter Max (mm) |
15.875 |
| MachSide IntClear Diameter 1 (Inch) |
0.6496 |
| Sleeve Capacity Max (Inch) |
0.6250 |
| Sleeve Capacity Minimum (Inch) |
0.6246 |
| Sleeve Capacity Minimum (mm) |
15.865 |
| Adapt/Shank/Bore Diameter WKPS (In) |
0.6250 |
| Overall Length (Inch) |
1.8110 |
| Shank Length (Inch) |
1.9685 |
| Body Diameter Max (Metric) |
19.050 |
| Gage Length 1 (Inch) |
0.1575 |
| Shank Length (Metric) |
50.000 |
| Units of Tool (Extract) |
IN - Inch |
| Gage Length 1 (Metric) |
4.000 |
| Body Diameter 1 Workpce Side (In) |
0.9450 |
| Body Diameter 1 Workpce Side (mm) |
24.000 |
| Adapter Style Machine Side-EPP |
ZYL-01 Straight Shank |
| Adapter Type Machine Side-EPP |
ZYL - Cylindrical Adapter |
| Adapter/Shank/Bore Diameter (Inch) |
0.7500 |
| Overall Length (Metric) |
46.000 |
| Catalog Sleeve Series |
HC750 |
| Brand |
WIDIA-Erickson |
| Adapt/Shank/Bore Diameter WKPS (mm) |
15.875 |
| Adapt/Shank/Bore Diameter WKPS F |
5/8 |
| Coolant Supply |
Yes |
| MachSide IntClear Diameter 1 (mm) |
16.500 |
| Sleeve Capacity Max (mm) |
15.875 |
