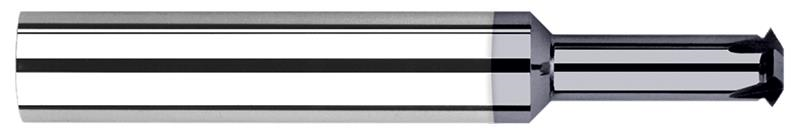

2.300 mm Cutter Diameter x 14.000 mm Reach 4 Flute AlTiN Coated Carbide Single Form M3 Thread Milling Cutter

  • Item Code: 761424-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill multiple pitches
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 1.380 mm
Length of Cut 0.532 mm
Included Angle 60
Size M3
Reach Multiple (10x)
Overall Length 38.000 mm
Angle per Side 30
Material Solid Carbide
Maximum Depth of Thread 14.000 mm
Number of Flutes 4
Brand Harvey Tool
Cutter Diameter Metric 2.30 mm
Coating/Finish AlTiN
Shank Diameter 3.000 mm
