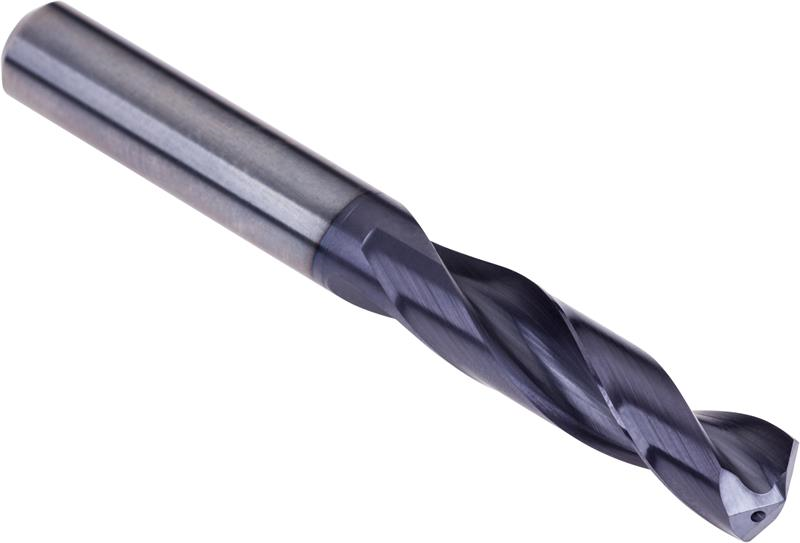

12.05 mm Solid Carbide TiAIN Finish 140? Split Point Force M Screw Machine Drill

  • Item Code: 7625218
  • Brand: Dormer
  • Unit Size: 1

Description

R467 Force-M solid carbide drills from Dormer have a special CTW flute design (Continuously Thinned Web) giving the drills extra strength. Together with the coolant feed, this allows the drills to operate at higher cutting speeds and feeds whilst still capable of producing a high quality and accurate hole (H9 hole tolerance). Manufactured from premium carbide, the drills are specifically designed for drilling stainless steels and other heat resistant super alloys, whilst the titanium aluminium nitride coating ensures great performance when drilling harder materials and extends the tool life. As a final touch, R467 carbide drills have a 140 degree, 4-facet split point which helps with self-centering and reduces the force needed to drill the workpiece. #

Tech Specs

Back To Top
Overall Length Inches 4.2126"
Decimal Diameter 0.4744"
Overall Length Metric 107 mm
Coating/Finish TiAlN
Metric Diameter 12.05 mm
Cutting Direction Right
Shank Style Cylindrical shank DIN 6535 HA
Material Solid Carbide
Point Angle 140 Deg.
Brand Dormer
