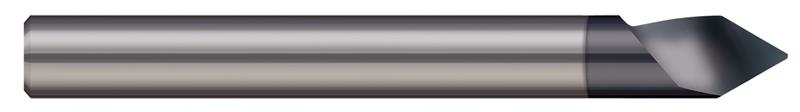

0.1250 in. (1/8) Shank Diameter x 0.0050 in. Flat x 60 Deg. Included 1 Flute AlTiN Coated Carbide Helical Tipped Engraver

  • Item Code: 764708-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Flat on Part 0.0050"
Length of Cut 0.1040"
Shank Diameter Decimal 0.1250"
Angle per Side 30
Included Angle 60
Material Solid Carbide
Shank Diameter Fractional 1/8"
Coating AlTiN
Number of Flutes 1
Overall Length 1.5000" (1-1/2)
Type II
Brand Harvey Tool
Split Length 0.0625" (1/16)
