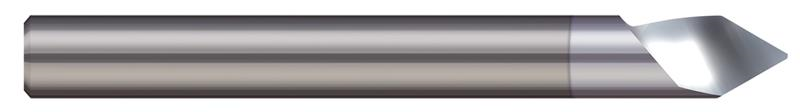

0.1250 in. (1/8) Shank Diameter x 0.0050 in. Flat x 60 Deg. Included 1 Flute TiB2 Coated Carbide Helical Tipped Engraver

  • Item Code: 764708-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Angle per Side 30
Flat on Part 0.0050"
Included Angle 60
Material Solid Carbide
Shank Diameter Decimal 0.1250"
Type II
Shank Diameter Fractional 1/8"
Length of Cut 0.1040"
Overall Length 1.5000" (1-1/2)
Split Length 0.0625" (1/16)
Coating TiB2
Number of Flutes 1
