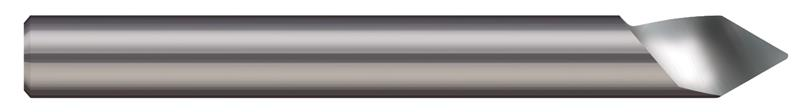

0.1250 in. (1/8) Shank Diameter x 0.0050 in. Flat x 60 Deg. Included 1 Flute Carbide Helical Tipped Engraver

  • Item Code: 764708
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Angle per Side 30
Included Angle 60
Material Solid Carbide
Coating None
Shank Diameter Decimal 0.1250"
Shank Diameter Fractional 1/8"
Flat on Part 0.0050"
Number of Flutes 1
Type II
Split Length 0.0625" (1/16)
Length of Cut 0.1040"
Overall Length 1.5000" (1-1/2)
