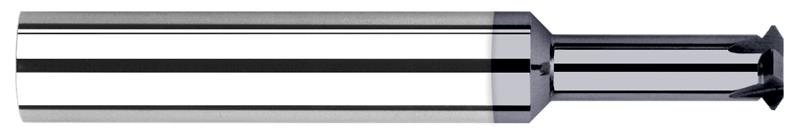

1.160 mm Cutter Diameter x 2.100 mm Reach 3 Flute AlTiN Nano Coated Carbide Single Form M1.6 Thread Milling Cutter for Hardened Steels

  • Item Code: 771616-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 48-68Rc
    • Single thread form designed to mill common pitch sizes
    • Cuts internal and external 60 degree metric threads
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.742 mm
Tip Flat 0.035 mm
Included Angle 60
Reach Multiple (3x)
Shank Diameter 3.000 mm
Cutter Diameter Metric 1.16 mm
Number of Flutes 3
Overall Length 38.000 mm
Coating/Finish AlTiN Nano
Maximum Depth of Thread 2.100 mm
Metric Y
Brand Harvey Tool
Length of Cut 0.268 mm
Angle per Side 30
Material Solid Carbide
Size M1.6
