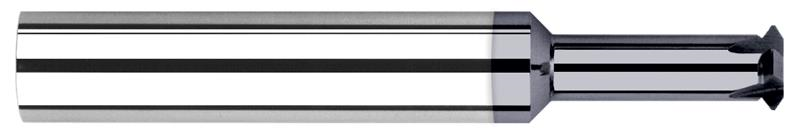

2.300 mm Cutter Diameter x 6.800 mm Reach 4 Flute AlTiN Nano Coated Carbide Single Form M3 Thread Milling Cutter for Hardened Steels

  • Item Code: 772724-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 48-68Rc
    • Single thread form designed to mill common pitch sizes
    • Cuts internal and external 60 degree metric threads
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Coating/Finish AlTiN Nano
Included Angle 60
Material Solid Carbide
Brand Harvey Tool
Length of Cut 0.531 mm
Overall Length 38.000 mm
Cutter Diameter Metric 2.30 mm
Tip Flat 0.050 mm
Metric Y
Size M3
Neck Diameter 1.541 mm
Number of Flutes 4
Reach Multiple (5x)
Shank Diameter 3.000 mm
Maximum Depth of Thread 6.800 mm
