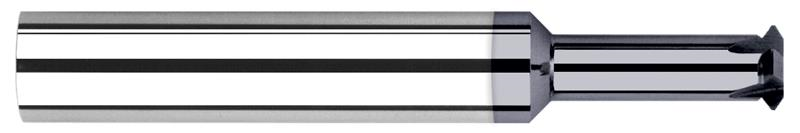

4.000 mm Cutter Diameter x 12.000 mm Reach 5 Flute AlTiN Nano Coated Carbide Single Form M5 Thread Milling Cutter for Hardened Steels

  • Item Code: 772728-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 48-68Rc
    • Single thread form designed to mill common pitch sizes
    • Cuts internal and external 60 degree metric threads
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Tip Flat 0.080 mm
Size M5
Brand Harvey Tool
Neck Diameter 2.800 mm
Angle per Side 30
Coating/Finish AlTiN Nano
Cutter Diameter Metric 4.00 mm
Included Angle 60
Material Solid Carbide
Number of Flutes 5
Overall Length 50.000 mm
Maximum Depth of Thread 12.000 mm
Metric Y
Length of Cut 0.924 mm
Reach Multiple (5x)
Shank Diameter 4.000 mm
