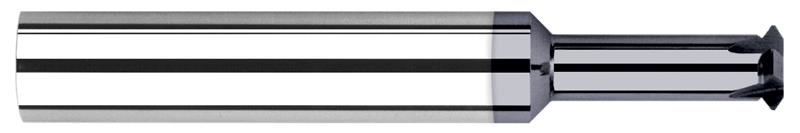

0.0980 in. (2.5 mm) Cutter Diameter x 0.3120 in. (5/16) Reach 4 Flute AlTiN Nano Coated Carbide Single Form #6 Thread Milling Cutter for Hardened Steels

  • Item Code: 773220-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steel 48-68Rc
    • Single thread form designed?to mill common pitch sizes
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • Cuts internal and external 60 degree UN threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Tip Flat 0.0025"
Maximum Depth of Thread 0.3120" (5/16)
Neck Diameter 0.0620" (1/16)
Number of Flutes 4
Shank Diameter 0.1875" (3/16)
Brand Harvey Tool
Length of Cut 0.0230"
Size 6
Angle per Side 30
Cutter Diameter Decimal 0.0980"
Material Solid Carbide
Overall Length 2.0000" (2)
Coating/Finish AlTiN Nano
Cutter Diameter Metric 2.50 mm
Included Angle 60
