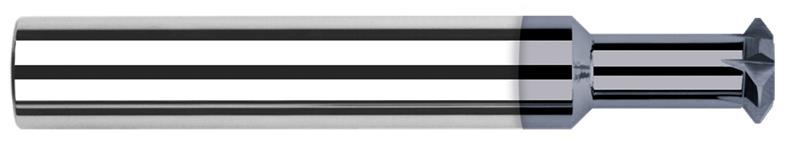

0.1250 in. (1/8) Cutter Diameter x 0.0730 in. Width x 0.5000 in. (1/2) Neck Length 4 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 775108-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0730"
Material Solid Carbide
Brand Harvey Tool
Tip Flat 0.0100"
Decimal Cutting Diameter 0.1250"
Neck Length 0.5000" (1/2)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
Neck Diameter 0.0620" (1/16)
Overall Length Decimal 1.5000"
Coating AlTiN
Angle per Side 45
Fractional Cutting Diameter 1/8"
Included Angle 90
Overall Length Fractional 1-1/2"
