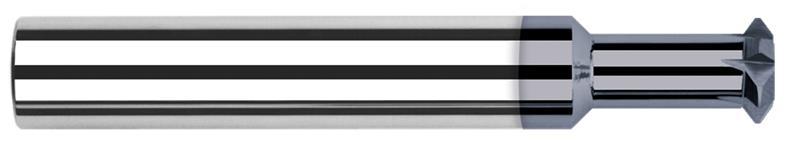

0.5000 in. (1/2) Cutter Diameter x 0.1980 in. Width x 1.5000 in. (1-1/2) Neck Length 6 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 775132-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.3120" (5/16)
Included Angle 90
Overall Length Decimal 4.0000"
Angle per Side 45
Coating AlTiN
Number of Flutes 6
Neck Length 1.5000" (1-1/2)
Overall Length Fractional 4"
Brand Harvey Tool
Tip Flat 0.0100"
Cutter Width 0.1980"
Decimal Cutting Diameter 0.5000"
Shank Diameter 0.5000" (1/2)
Fractional Cutting Diameter 1/2"
Material Solid Carbide
