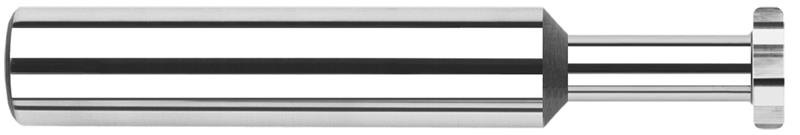

0.3125 in. (5/16) Cutter Diameter x 0.0200 in. Radius x 0.0620 in. (1/16) Width x 0.4680 in. (15/32) Neck Length 6 Flutes CarbideCorner Radius Standard Keyseat Cutter

  • Item Code: 776562
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Corner Radius Decimal 0.0200"
Decimal Diameter 0.3125"
Material Solid Carbide
Overall Length Decimal 2.5000"
Radial Depth of Cut 0.0680"
Top Corner Radius 0.02
Neck Diameter 0.1560" (5/32)
Coating/Finish None
Shank Diameter 0.3125" (5/16)
Neck Length 0.4680" (15/32)
Overall Length Fractional 2-1/2"
Cutter Width 0.0620" (1/16)
Type I
Fractional Diameter 5/16"
Reach Multiple (1.5x)
Number of Flutes 6
