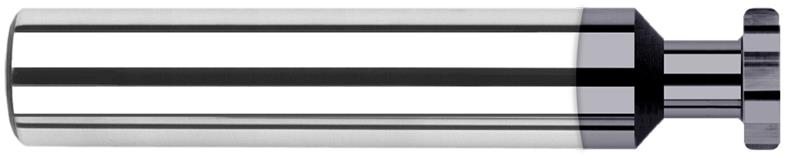

0.3125 in. (5/16) Cutter Diameter x 0.0100 in. Radius x 0.0930 in. (3/32) Width x 0.1870 in. (3/16) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 776850-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish AlTiN
Radial Depth of Cut 0.0910"
Material Solid Carbide
Reach Multiple (0.5x)
Neck Diameter 0.1100" (2.8 mm)
Type II
Neck Length 0.1870" (3/16)
Overall Length 2.5000" (2-1/2)
Cutter Width 0.0930" (3/32)
Top Corner Radius 0.01
Decimal Diameter 0.3125"
Fractional Diameter 5/16"
Number of Flutes 6
Radius Decimal 0.0100"
Shank Diameter 0.3125" (5/16)
