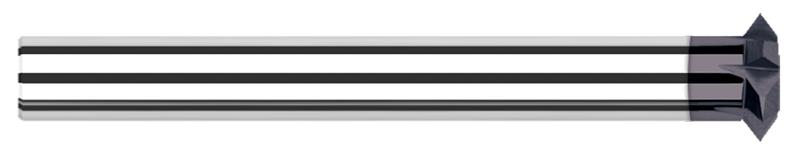

0.5000 in. (1/2) Cutter Diameter x 0.2500 in. (1/4) Width 8 Flute AlTiN Coated Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 777910-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 45
Brand Harvey Tool
Overall Length Fractional 6-1/4"
Shank Diameter 0.2500" (1/4)
Number of Flutes 8
Coating AlTiN
Decimal Cutting Diameter 0.5000"
Fractional Cutting Diameter 1/2"
Cutter Width 0.2500" (1/4)
Material Solid Carbide
Included Angle 90
Overall Length Decimal 6.2500"
