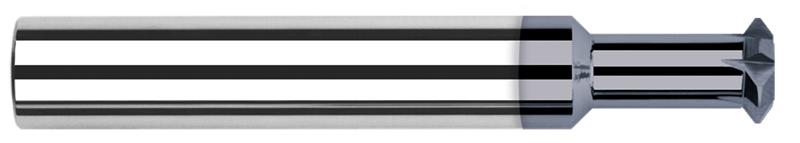

0.1250 in. (1/8) Cutter Diameter x 0.0460 in. Width x 0.1870 in. (3/16) Neck Length 4 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 778008-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Brand Harvey Tool
Fractional Cutting Diameter 1/8"
Material Solid Carbide
Cutter Width 0.0460"
Tip Flat 0.0100"
Included Angle 60
Number of Flutes 4
Overall Length Decimal 1.5000"
Shank Diameter 0.1250" (1/8)
Coating AlTiN
Decimal Cutting Diameter 0.1250"
Overall Length Fractional 1-1/2"
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
