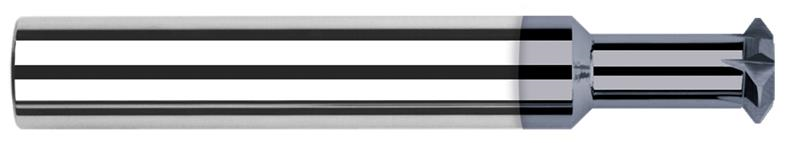

0.1875 in. (3/16) Cutter Diameter x 0.0650 in. Width x 0.3120 in. (5/16) Neck Length 4 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 778012-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Brand Harvey Tool
Decimal Cutting Diameter 0.1875"
Neck Diameter 0.0930" (3/32)
Neck Length 0.3120" (5/16)
Tip Flat 0.0100"
Included Angle 60
Number of Flutes 4
Overall Length Fractional 2"
Coating AlTiN
Cutter Width 0.0650"
Shank Diameter 0.1875" (3/16)
Overall Length Decimal 2.0000"
