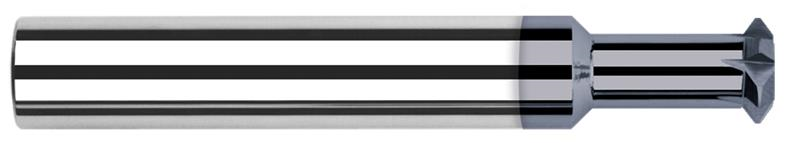

0.2500 in. (1/4) Cutter Diameter x 0.0820 in. Width x 0.3120 in. (5/16) Neck Length 4 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 778016-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.3120" (5/16)
Angle per Side 30
Included Angle 60
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Coating AlTiN
Tip Flat 0.0100"
Overall Length Decimal 2.0000"
Cutter Width 0.0820"
Decimal Cutting Diameter 0.2500"
Number of Flutes 4
Fractional Cutting Diameter 1/4"
Neck Diameter 0.1250" (1/8)
Overall Length Fractional 2"
