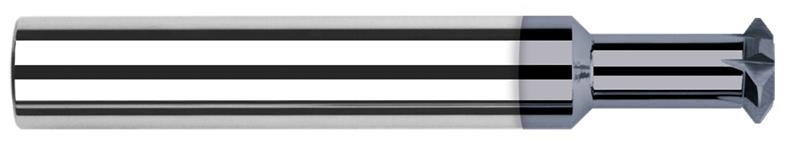

0.3750 in. (3/8) Cutter Diameter x 0.0820 in. Width x 0.5000 in. (1/2) Neck Length 6 Flute AlTiN Coated Carbide Tip Flat Double Angle Shank Cutter

  • Item Code: 778024-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a ?V-groove?
    • Flat on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.3750"
Angle per Side 30
Fractional Cutting Diameter 3/8"
Included Angle 60
Material Solid Carbide
Coating AlTiN
Neck Diameter 0.2500" (1/4)
Overall Length Decimal 2.5000"
Overall Length Fractional 2-1/2"
Shank Diameter 0.3750" (3/8)
Tip Flat 0.0100"
Brand Harvey Tool
Cutter Width 0.0820"
Neck Length 0.5000" (1/2)
Number of Flutes 6
