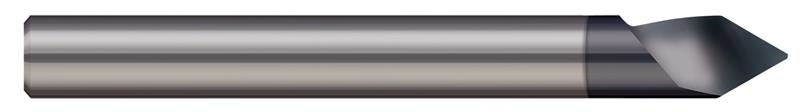

0.2500 in. (1/4) Shank Diameter x 0.0100 in. Flat x 30 Deg. Included 1 Flute AlTiN Coated Carbide Helical Tipped Engraver

  • Item Code: 779016-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter Decimal 0.2500"
Angle per Side 15
Coating AlTiN
Overall Length 2.5000" (2-1/2)
Type II
Brand Harvey Tool
Flat on Part 0.0100"
Length of Cut 0.5000" (1/2)
Material Solid Carbide
Shank Diameter Fractional 1/4"
Split Length 0.1250" (1/8)
Included Angle 30
Number of Flutes 1
