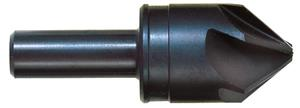

3/4 Inch High Speed Steel 100° Included Angle Chatterless 6-Flute Countersink
- Item Code: 79075004
- Brand: MA Ford
- Unit Size: 1
Description
Chatterless Six Flute - Series 79
Standard six flute countersinks are designed for economical, general purpose countersinking, chamfering or deburring. Because of the multiple flute design, chip loads are generally smaller. Even at maximum speeds, chatter-free machining is possible. Steam homogeneous surface treatment (blackening) is used to prolong tool life and prevent galling.
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Diameter Maximum | 0.21 Inch |
| Shank Diameter | 1/2 Inch |
| Fractional Diameter | 3/4" |
| Number of Flutes | 6 |
| Shank Type | Straight |
| End Type | Single |
| Overall Length | 2-3/4 Inch |
| Brand | MA Ford |
| Angle | 100° |
| Material | High Speed Steel |
| Type | Countersink |
