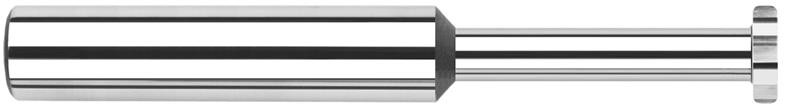

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.0930 in. (3/32) Width x 1.1250 in. (1-1/8) Neck Length 8 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 793750
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.0840"
Reach Multiple (3x)
Brand Harvey Tool
Number of Flutes 8
Neck Diameter 0.1870" (3/16)
Coating/Finish None
Type I
Cutter Width 0.0930" (3/32)
Neck Length 1.1250" (1-1/8)
Top Corner Radius 0.01
Fractional Diameter 3/8"
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0100"
Shank Diameter 0.3750" (3/8)
Decimal Diameter 0.3750"
Material Solid Carbide
