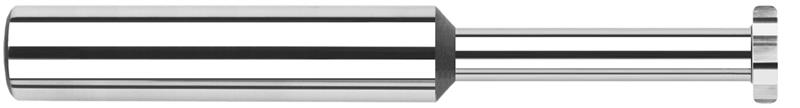

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 0.1250 in. (1/8) Width x 1.5000 in. (1-1/2) Neck Length 8 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 793960
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Radius Decimal 0.0100"
Overall Length 3.0000" (3)
Coating/Finish None
Decimal Diameter 0.5000"
Material Solid Carbide
Shank Diameter 0.5000" (1/2)
Cutter Width 0.1250" (1/8)
Fractional Diameter 1/2"
Neck Length 1.5000" (1-1/2)
Number of Flutes 8
Radial Depth of Cut 0.1150"
Top Corner Radius 0.01
Type I
Neck Diameter 0.2500" (1/4)
Reach Multiple (3x)
