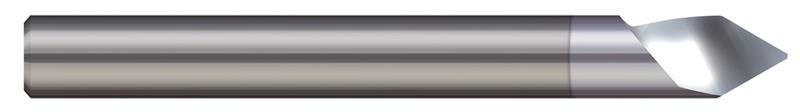

0.1250 in. (1/8) Shank Diameter x 0.0100 in. Flat x 90 Deg. Included 1 Flute TiB2 Coated Carbide Helical Tipped Engraver

  • Item Code: 814708-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Split Length 0.0625" (1/16)
Number of Flutes 1
Shank Diameter Fractional 1/8"
Coating TiB2
Included Angle 90
Length of Cut 0.0580"
Overall Length 1.5000" (1-1/2)
Type II
Brand Harvey Tool
Shank Diameter Decimal 0.1250"
Angle per Side 45
Flat on Part 0.0100"
Material Solid Carbide
