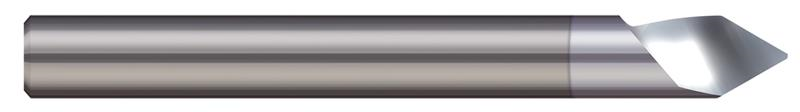

0.1875 in. (3/16) Shank Diameter x 0.0100 in. Flat x 90 Deg. Included 1 Flute TiB2 Coated Carbide Helical Tipped Engraver

  • Item Code: 814712-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 90
Shank Diameter Decimal 0.1875"
Angle per Side 45
Flat on Part 0.0100"
Length of Cut 0.0890"
Brand Harvey Tool
Coating TiB2
Material Solid Carbide
Overall Length 2.0000" (2)
Shank Diameter Fractional 3/16"
Number of Flutes 1
Split Length 0.0938"
Type II
