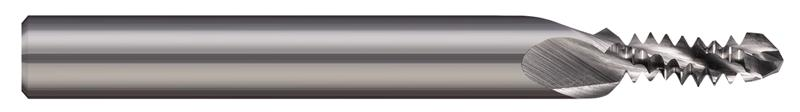

0.0876 in. Drill Diameter x 0.2513 in. Length of Cut 3 Flute Carbide Multi-Form 4-40 Combination Drill/Thread Mill

  • Item Code: 820616
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Minor Diameter 0.0356"
Point Angle 130
Secondary Point Angle 90
Drill Length 0.0250"
Shank Diameter 0.1250" (1/8)
Size Apr-40
Angle per Side 45
Brand Harvey Tool
Chamfer Length 0.0247"
Weldon Flat N
Length of Cut Multiple (3x)
Coating/Finish None
Drill Diameter Decimal 0.0876"
Length of Cut 0.2513"
Material Solid Carbide
Overall Length 2.0000" (2)
Cutter Diameter Decimal 0.0850"
Number of Flutes 3
End Length 0.0580"
Included Angle 90
