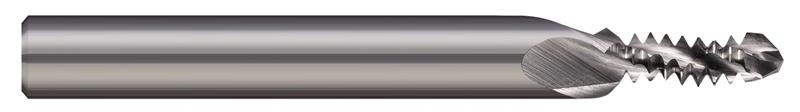

0.1076 in. Drill Diameter x 0.3323 in. Length of Cut 3 Flute Carbide Multi-Form 6-32 Combination Drill/Thread Mill

  • Item Code: 820622
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.1000"
Drill Diameter Decimal 0.1076"
Length of Cut 0.3323"
End Length 0.0707"
Size Jun-32
Secondary Point Angle 90
Angle per Side 45
Brand Harvey Tool
Drill Length 0.0312" (1/32)
Material Solid Carbide
Included Angle 90
Chamfer Length 0.0284"
Length of Cut Multiple (3x)
Minor Diameter 0.0475"
Overall Length 2.0000" (2)
Weldon Flat N
Number of Flutes 3
Point Angle 130
Coating/Finish None
Shank Diameter 0.1875" (3/16)
