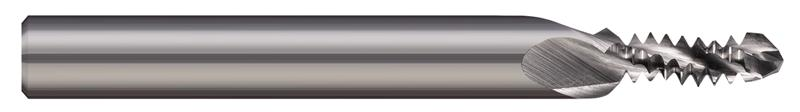

0.1336 in. Drill Diameter x 0.3652 in. Length of Cut 3 Flute Carbide Multi-Form 8-32 Combination Drill/Thread Mill

  • Item Code: 820628
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Diameter Decimal 0.1336"
Minor Diameter 0.0735"
End Length 0.0767"
Size Aug-32
Brand Harvey Tool
Secondary Point Angle 90
Drill Length 0.0312" (1/32)
Material Solid Carbide
Chamfer Length 0.0284"
Coating/Finish None
Cutter Diameter Decimal 0.1150"
Angle per Side 45
Included Angle 90
Length of Cut 0.3652"
Length of Cut Multiple (3x)
Weldon Flat N
Point Angle 130
Shank Diameter 0.1875" (3/16)
Number of Flutes 3
Overall Length 2.0000" (2)
