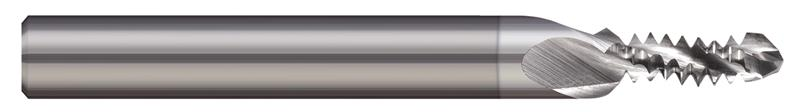

0.1494 in. Drill Diameter x 0.4966 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 10-24 Combination Drill/Thread Mill

  • Item Code: 820634-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Diameter Decimal 0.1494"
Drill Length 0.0416"
End Length 0.0939"
Size 24-Oct
Cutter Diameter Decimal 0.1200"
Minor Diameter 0.0760"
Secondary Point Angle 90
Weldon Flat N
Material Solid Carbide
Overall Length 2.0000" (2)
Brand Harvey Tool
Number of Flutes 3
Point Angle 130
Shank Diameter 0.2500" (1/4)
Length of Cut Multiple (3x)
Coating/Finish TiB2
Angle per Side 45
Included Angle 90
Length of Cut 0.4966"
Chamfer Length 0.0345"
