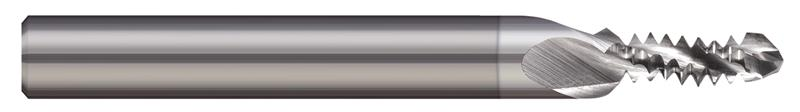

0.1596 in. Drill Diameter x 0.4681 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 10-32 Combination Drill/Thread Mill

  • Item Code: 820636-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Diameter Decimal 0.1596"
Minor Diameter 0.0995"
Angle per Side 45
Cutter Diameter Decimal 0.1200"
Secondary Point Angle 90
Weldon Flat N
Drill Length 0.0312" (1/32)
Number of Flutes 3
Overall Length 2.0000" (2)
Chamfer Length 0.0284"
End Length 0.0828"
Length of Cut Multiple (3x)
Material Solid Carbide
Brand Harvey Tool
Point Angle 130
Shank Diameter 0.2500" (1/4)
Included Angle 90
Length of Cut 0.4681"
Coating/Finish TiB2
Size Oct-32
